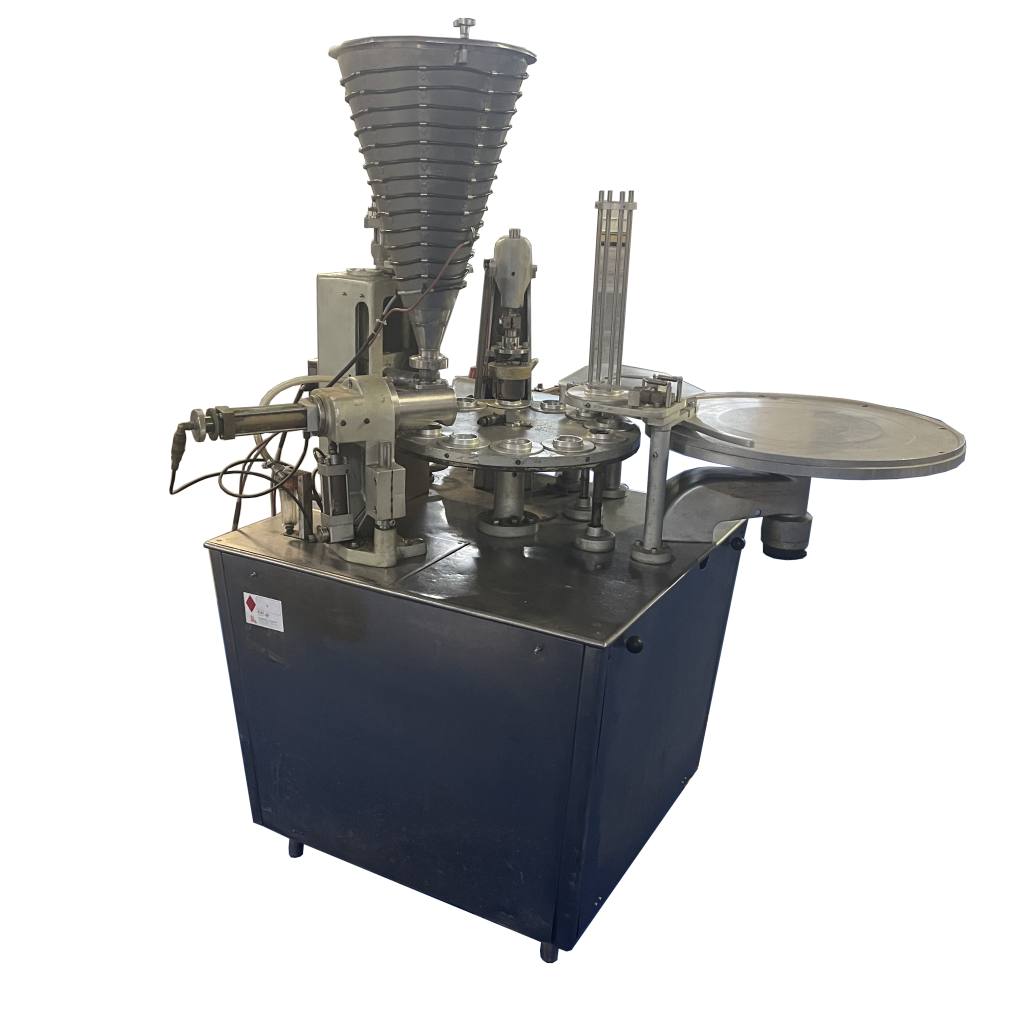

Hamba 2400

Hamba 2400
  • 1-track rotary machine
  • Max. 2,400 cups/hour
  • Can be converted for cups up to Ø50 mm
  • Dimensions approx. 1,300 x 1,300 x 2,000 mm
  • Year of manufacture approx. 1960s (unfortunately no type plate)


More views




Product Description

Function:

First, the cups are unstacked from the cup magazine using a vacuum suction cup and placed in the turntable. The first cycle uses a sensor to check whether the cup is in the turntable. One cycle later, the product is filled into the cup. The filling volume can be infinitely adjusted via the touch panel. The PET blank is then placed in the blank station and sealed airtight with the cup in the downstream sealing station.



System: Flexible filling system
Design: Cup and blank magazine
Automatic cycle
Capacity: max. 2400 cups / hour
Filling volume: Cup Ø95 mm



Technical data

Category: Cup filler
Automatic: Fully automatic system
Fabrication: Hamba
Typ: 2400
Year of construction: 1960s
Capacity per hour from:
Capacity per hour to: 2400
Packaging: cups
Number of lanes: 1-track rotary filler
